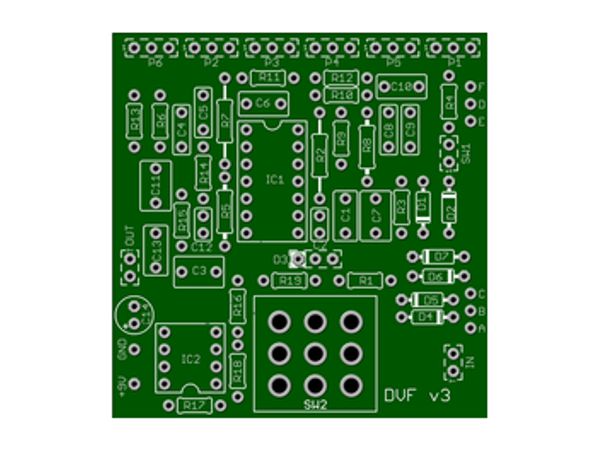

DVF – DUAL VOICE FILTER
Cocked Wah with Overdrive
The DVF (Dual Voice Filter) is based on a circuit by Craig Anderton in the 70s with added on-board distortion. Completely moddable to taste
The circuit comprises four stages
– Input gain stage
– Low to mid frequency sweep filter
– Mid to high frequency sweep filter
– Mixing stage
Works great with a Stage 3 Mini Booster and a Mini-Me Chorus
Download Build Report HERE
IMPORTANT LINKS
For all product related enquiries about GuitarPCB products contact Pedal Parts Australia HERE
Full technical support for this and other GuitarPCB products is provided by the GUITARPCB FORUM HERE
55.2mm WIDE
56.9mm HIGH
